The compact member of the industry's first robotically controlled line source family — multi-axis coverage shaped remotely, after the array is flown, with no ladders and no labour call.
AES70.dynamics

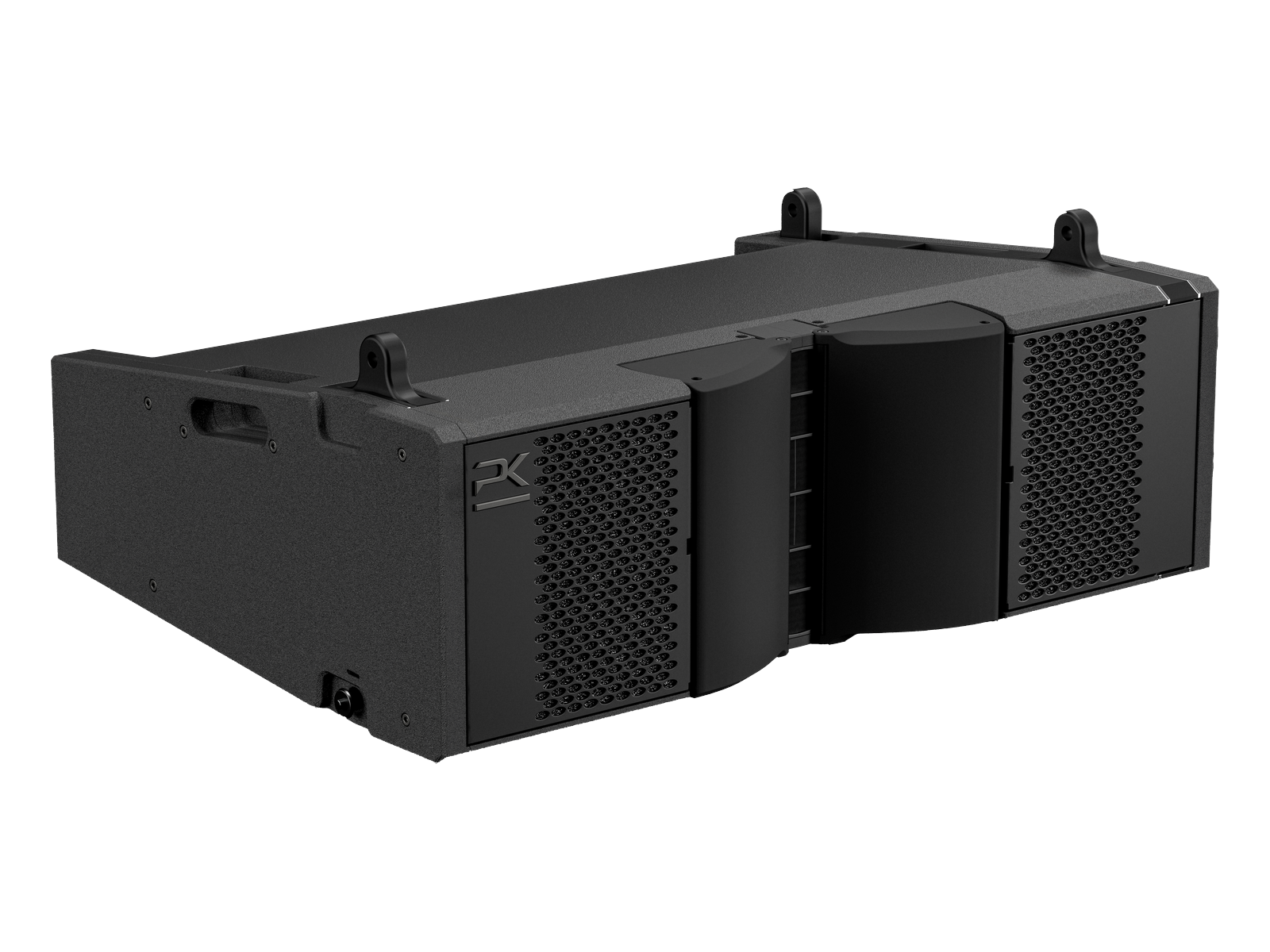

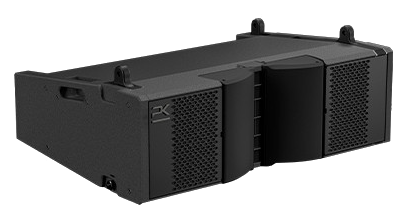

T8 is the compact member of the industry's first robotically controlled line source family. Featuring PK Sound's patented multi-axis robotics, T8's output is precisely controlled in both the vertical and horizontal planes, offering system operators maximum flexibility in making coverage adjustments after the array is flown.
A pair of vented 8″ Tetracoil transducers with custom phase plugs manage low-frequency response while a dual ring radiator coaxial compression driver handles mid and high frequencies.
| Peak SPL | 143 dB |
| Frequency Response | 50 Hz-20 kHz |
| Actuation System | |
| Horizontal Directivity | 60°-120° Robotic Directivity |
| Horizontal Resolution | 5° Symmetric & Asymmetric |

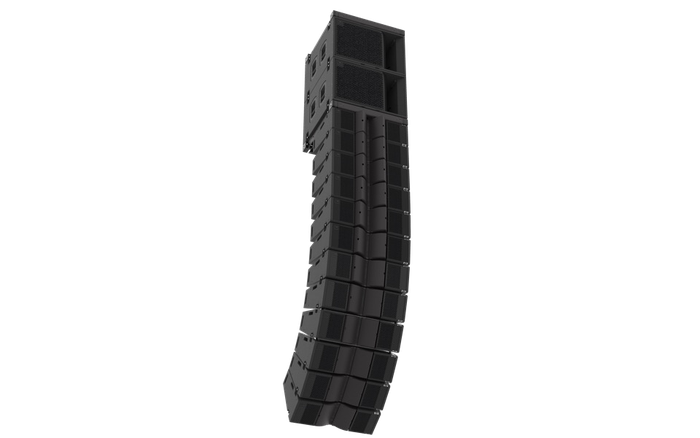

| Vertical Adjustment | 0°-12° Robotic Directivity |
| Vertical Resolution | 0.1° Increments |
| Horizontal Thrust | 750 N |
| Vertical Thrust | 2,500 N |
| Duty Cycle | 80,000 Actuations (109 years) |
| Low Frequency | 2 × 8″ Neodymium Tetracoil |
| Mid Frequency | 1 × 3″ Coaxial Dual Ring Radiator |
| High Frequency | 1 × 2″ Coaxial Dual Ring Radiator |
| Amplifier | VE15 2-Channel Class D |
| Amplifier Power | 1,400 W |
| Operating Voltage | Auto-Switching 100-240 V, 50/60 Hz |
| Power Consumption | 220 W |
| Network | AES70 / Proprietary |
| Input Selection | Analog/AES — IP65 |
| Audio/Network | Balanced XLR/etherCON — IP65 |
| Power | powerCON TRUE1 — IP65 |
| Warranty | 7 years · all components |
